Mist Eliminator Technical Parameters

Mist eliminator with introduction of major material – knitted wire mesh, also the processing types of finished filter products.

Knitted Mesh Mist Eliminators Wire Mesh Demister
Demister Pad made of Knitted Mesh Fabrics Metal Wire Mist Removing Eliminators

Galvanized Steel Filter Wire Mesh
Galvanized Knitted Wire for Eliminators Making

Mist eliminator is also known as gas-liquid filter mesh, wire mesh demisters, demister pad, or knitted wire mesh pad filter. It is made of knitted wire mesh used in the gas-liquid separation and mist removing devices. It can also be used in construction for the electromagnetic shielding.

Technical Parameters of Mist Eliminators:

Knitted Wire Mesh – Basic Material for Processing of Mist Eliminators and Demister Pad:

Material Uses: Knitted wire mesh can be made in metal or nonmetal wires:
1) Metal wire: Stainless steel wire, galvanized wire, copper wire, brass wire, nickel wire, titanium wire, alloy wire;
2) Non-metallic wire: polyethylene filaments, polypropylene, polytetrafluoroethylene yarn, glass fiber yarn.

Woven Style: Single wire, double wire, multi-strand wire weaving.

Three Standard Forms of Knitted Wire Mesh, Material for Mist Eliminators: standard, high penetration and high efficient forms.

Wire Diameter Applied for Mist Eliminator (Demister Pad): φ0.07mm - 0.55mm round wire or pressed into a flat wire (common wire diameter: 0.20mm-0.25mm). Wires with wire diameter ≤ φ0.30mm can be made in multi-strand weaving. The multi-strand wire can be mixed by polyester and metal wire.

Mesh Size, Opening Size: From (2 × 3mm) to (4 × 5mm) and then to (12 × 6mm). Slight adjustment can be made to the opening sizes.

Opening Form: Big opening and small opening (The opening has the same sizes in the longitudinal direction while different in the width).

Mesh Width Range: 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400mm, 500mm, 600mm, 800mm, 1000mm, 1200mm, 1400mm and etc.

Mesh Shape: Flat Type and corrugated. (Width and depth of the corrugations have different specifications).

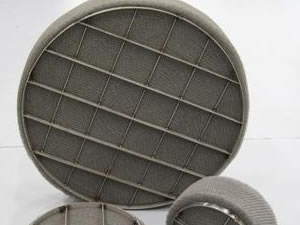

The knitted wire mesh mist eliminators can be processed into pads of several types: Fitted round demister pad, round demister pad, rectangular wire mesh demister, multi-block circular demister pad, drawer-type wire mesh demister, wave wire mesh demister pad.

Other knitted wire mesh products: knitted mesh gaskets, automotive gaskets.
